1. Quick Details of lip seal 195-13-05161 :
| Part NO. | 195-13-05161 |
| Machine | D375A D375A-5E |
| Size | OEM |
| Material | RUBBER,SILICON,FIBERGLASS |
| Oil seal type | SERVICE KIT,TORQUE CONVERTER |
2. 195-13-05161 parts on group :
| PART NO. | PART NAME | QTY |
| 195-13-05161 | SERVICE KIT,TORQUE CONVERTER | 1 |
| 195-13-05160 | SERVICE KIT,TORQUE CONVERTER | 1 |
| 02896-61012 | O-RING,(F2310-58C0 -28 ) | 1 |
| 07000-12014 | O-RING,(F2310-53C0 -31 ) | 1 |
| 07000-72010 | O-RING,(F2310-57C0 -3 ) | 1 |
| 07000-72010 | O-RING,(F2310-57C0 -22 ) | 1 |
| 07000-72010 | O-RING,(F2310-58C0 -11 ) | 1 |
| 07000-72055 | O-RING,(F2310-53C0 -27 ) | 1 |
| 07000-72055 | O-RING,(F2310-55C0 -15 ) | 2 |
| 07000-72055 | O-RING,(F2310-56C0 -16 ) | 2 |
| 07000-72070 | O-RING,(F2310-54C0 -11 ) | 1 |
| 07000-72085 | O-RING,(F2310-53C0 -5 ) | 1 |
| 07000-75160 | O-RING,(F2310-55C0 -19 ) | 1 |
| 07000-72130 | O-RING,(F2310-55C0 -19 ) | 1 |
| 07000-73030 | O-RING,(F2310-57C0 -16 ) | 1 |
| 07000-73030 | O-RING,(F2310-57C0 -36 ) | 1 |
| 07000-73030 | O-RING,(F2310-58C0 -9 ) | 1 |
| 07000-73034 | O-RING,(F2310-53C0 -3 ) | 1 |
| 07000-73035 | O-RING,(F2310-58C0 -26 ) | 1 |
| 07000-73038 | O-RING,(F2310-57C0 -5 ) | 1 |
| 07000-73038 | O-RING,(F2310-57C0 -23 ) | 1 |
| 07000-73045 | O-RING,(F2310-56C0 -12 ) | 2 |
| 07000-73048 | O-RING,(F2310-53C0 -4 ) | 3 |
| 07000-75150 | O-RING,(F2310-55C0 -5 ) | 1 |
| 07000-75175 | O-RING,(F2310-52C0 -14 ) | 1 |
| 07000-75270 | O-RING,(F2310-55C0 -14 ) | 1 |
| 07000-75270 | O-RING,(F2310-59C0 -7 ) | 1 |
| 07002-61423 | O-RING,(F2310-55C0 -3 ) | 2 |
| 07002-62034 | O-RING,(F2310-58C0 -29 ) | 1 |
| 07002-63034 | O-RING,(F2310-58C0 -4 ) | 1 |
| 07005-01212 | SEAL, WASHER,(F2310-55C0 -26 ) | 2 |
| 07005-01212 | SEAL, WASHER,(F2310-55C0 -29 ) | 6 |
| 07005-01212 | SEAL, WASHER,(F2310-55C0 -32 ) | 6 |
| 07005-01212 | SEAL, WASHER,(F2310-55C0 -35 ) | 4 |
| 07012-50125 | OIL SEAL,(F2310-52C0 -15 ) | 1 |
| 07012-10125 | SEAL,(F2310-52C0 -15 ) | 1 |
| 07018-31104 | RING,(F2310-51C0 -13 ) | 1 |
| 198-13-42710 | SEAL RING,(F2310-51C0 -4 ) | 1 |
| 07018-31907 | RING,(F2310-51C0 -4 ) | 1 |
| 145-15-42810 | RING,(F2310-53C0 -14 ) | 1 |
| 155-15-12820 | RING,(F2310-53C0 -16 ) | 1 |
| 175-15-59250 | RING,(F2310-52C0 -25 ) | 2 |
| 198-13-49110 | O-RING,(F2310-53C0 -6 ) | 1 |
| 566-15-49210 | RING,(F2310-52C0 -23 ) | 2 |
| 711-66-00010 | SHIM ASSEMBLY,(F2310-52C0 -13 ) | 1 |
| 198-13-46910 | GASKET,(F2310-58C0 -22 ) | 1 |
| 711-66-16910 | GASKET,(F2310-58C0 -22 ) | 1 |
| 711-66-16920 | GASKET,(F2310-58C0 -23 ) | 1 |

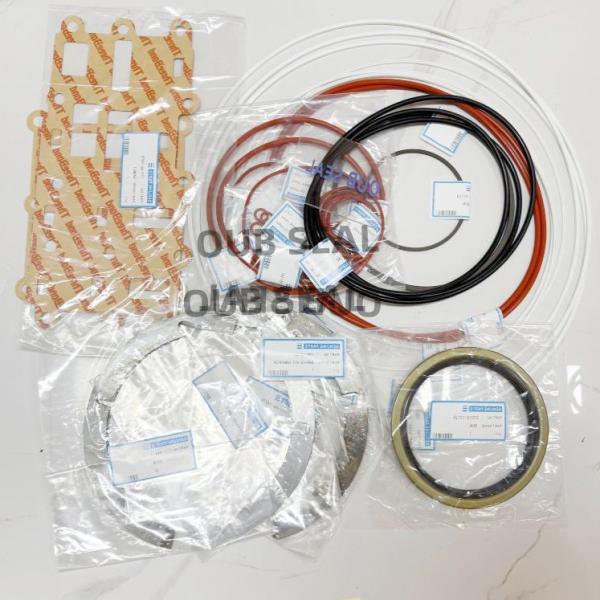

3. 195-13-05161 picture:
4. Part service catalog :
| PART NO. | PART NAME |
| 195-13-05161 | SERVICE KIT |
| 175-15-05064 | SERVICE KIT |
| 175-15-05062 | SERVICE KIT |
| 175-15-05111 | SERVICE KIT |
| 175-15-05110 | SERVICE KIT |
| 195-15-05221 | SERVICE KIT |
| 195-15-05810 | SERVICE KIT |
| 20G-14-K1200 | SERVICE KIT |
| 20G-14-K1000 | SERVICE KIT |
| 20E-14-K1101 | SERVICE KIT |
| 120-10-05100 | SERVICE KIT,MAIN CLUTCH |
| 195-13-05150 | SERVICE KIT,TORQUE CONVERTER |
| 195-13-05161 | SERVICE KIT,TORQUE CONVERTER |
| 195-13-05162 | SERVICE KIT,TORQUE CONVERTER |
| 195-15-05610 | SERVICE KIT,CONTROL VALVE |
| 195-15-05620 | SERVICE KIT,CONTROL |
| 195-15-05640 | SERVICE KIT,LUBRICATION VALVE |
| 195-15-05670 | SERVICE KIT,TRANSMISSION,(B) |
| 195-15-05680 | SERVICE KIT,COVER (B) |
| 195-15-05700 | SERVICE KIT,TRANSMISSION |
| 195-15-05710 | SERVICE KIT,TRANSMISSION CONTROL VALVE |
| 195-15-05711 | SERVICE KIT,TRANSMISSION CONTROL VALVE |
| 195-15-05712 | SERVICE KIT,TRANSMISSION CONTROL VALVE |
| 195-15-05800 | SERVICE KIT,TRANSMISSION |
| 195-15-05810 | SERVICE KIT,TRANSMISSION CONTROL VALVE |
| 707-98-11020 | SERVICE KIT |
| 707-98-11020 | SERVICE KIT |
| 707-98-56625 | SERVICE KIT |
| 707-98-74100 | SERVICE KIT |
| 707-98-74100 | SERVICE KIT,RIPPER TILT CYLINDER |
| 707-98-74400 | SERVICE KIT |
| 707-98-74400 | SERVICE KIT,RIPPER LIFT CYLINDER |
| 707-98-74410 | SERVICE KIT |
| 707-98-74410 | SERVICE KIT,BLADE TILT CYLINDER |
| 707-98-81010 | SERVICE KIT |
| 707-98-81010 | SERVICE KIT,TILT CYL.R.H.(FOR PITCH DOZER) |
5. FAQ
Q: What material is the gasket made of?
A: While there's a variety of materials used in gasket and seal kits, the "paper-like" gaskets are typically one of these types:
- Reinforced Cellulose with Nitrile Binder: This is a common material that looks like paper. It offers excellent resistance to oil and other fluids, and is good for sealing at high temperatures and pressures.
- Compressed Non-Asbestos Fiber: This material is a blend of non-asbestos fibers (like fiberglass or aramid fibers) combined with a rubber binder, such as nitrile rubber. It's a high-performance material that provides good temperature and pressure resistance.
- Cork-Rubber Blend: This material combines cork's flexibility and sealing properties with the durability and chemical resistance of synthetic rubber. It is also a very common material for automotive gaskets.
Q: I want to know the functions of transmission kit,do you know that ?
A: Yes, the kit 175-15-05064 main functions include:
- Seal & Gasket Replacement – Prevents fluid leaks by replacing worn-out seals, O-rings, and gaskets
- Bearing & Bushings Renewal – Reduces friction and wear in moving parts.
- Clutch & Synchronizer Repair – Ensures smooth gear shifting by replacing damaged clutch plates or synchronizer rings.
- Preventing Further Damage – Extends transmission lifespan by addressing early signs of wear
Q: I see many white color rings in your picture , so what material is this ?
A: The material is Fiberglass or Glass Fiber,I'd love to show you the of fiberglass :
- High Strength-to-Weight Ratio: Stronger than many metals (per weight) but lightweight
- Tensile Strength: Comparable to steel, but more flexible.
- Stiffness: Moderate rigidity (can be adjusted with resin/fiber ratios).
Impact Resistance: Absorbs energy without permanent deformation.
Q: What is the difference of silicon o-ring and rubber o-ring?
- Temperature Resistance
- Silicone O-rings:Excellent high-temperature resistance (-60°C to 230°C / -76°F to 446°F).Performs well in extreme heat but can degrade at very high temps (>250°C) without proper reinforcement.
- Rubber O-rings:Nitrile (NBR): -40°C to 120°C (-40°F to 248°F).
- EPDM: -50°C to 150°C (-58°F to 302°F).
- FKM (Viton): -20°C to 200°C (-4°F to 392°F).
Winner: Silicone for extreme high & low temps.
2. Chemical Resistance
- Silicone O-rings:Good resistance to water, ozone, and UV light.Poor resistance to fuels, oils, acids, and solvents.
- Rubber O-rings:Nitrile (NBR): Excellent resistance to oils & fuels.
- EPDM: Resistant to water, steam, and mild chemicals.
- FKM (Viton): Excellent resistance to fuels, oils, acids, and harsh chemicals.
Winner: Rubber (NBR/FKM) for oil & chemical resistance.
6.Exhibition & Warehous
Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
